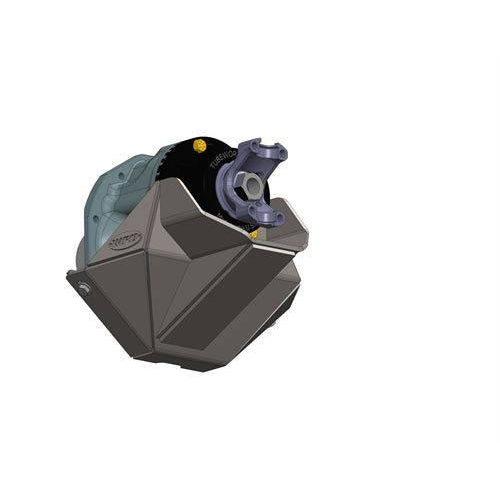

WFO 9”/10” High Pinion Guard

WFO 1991 - 9”/10” HIGH Pinion Guard

• Can be used with the following 3^rd members:
  • Gearworks high pinion 3^rd member
  • Tubeworks CrossTie Billet high pinion 3^rdmember
  • Strange Engineering high pinion 3^rd member
  • Yukon Gear & Axle high pinion 3^rd member (might need a spacer due to thin pinion flanges)
  • Can also be used with combined companies
    • Gearworks 3^rd member with a Tubeworks Duplex pinion support
    • Strange 3^rd member with Gearworks Pinion Support
• Completely made from ¼” P&O steel and bottom plated with a strip of ¼” AR skid resistant steel
• Accepts up to a 1480 forged or billet u-joint style yolk or flange
• Bolts to the lower 3 bolts as well as 2 provided tabs you weld onto your housing
• From pinion mounting face to bottom housing flange is 5"
• Does not come with longer pinion bolts. You will need to source qty. (3) 1/4" longer bolts
• Product comes unpainted raw steel
