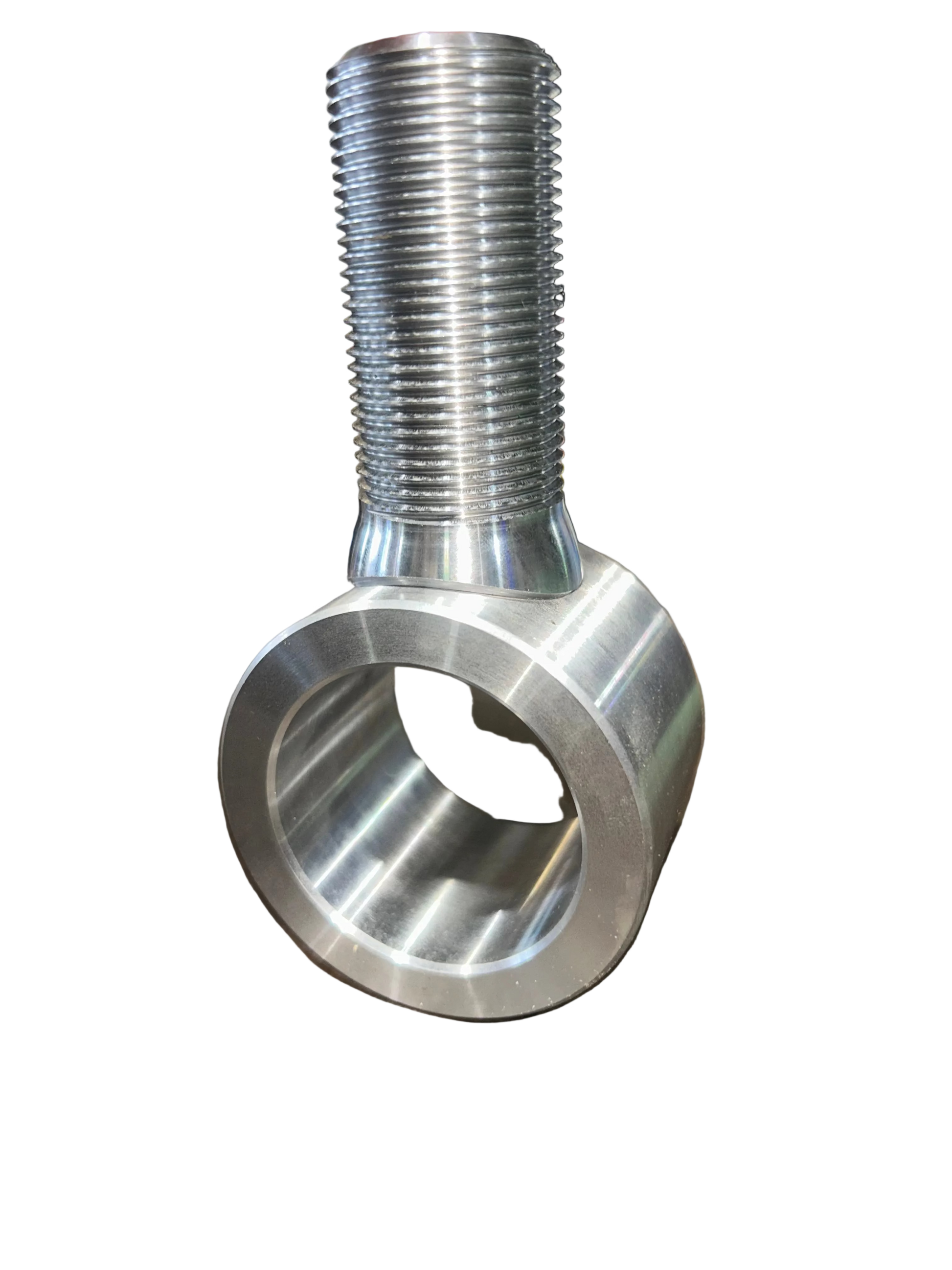

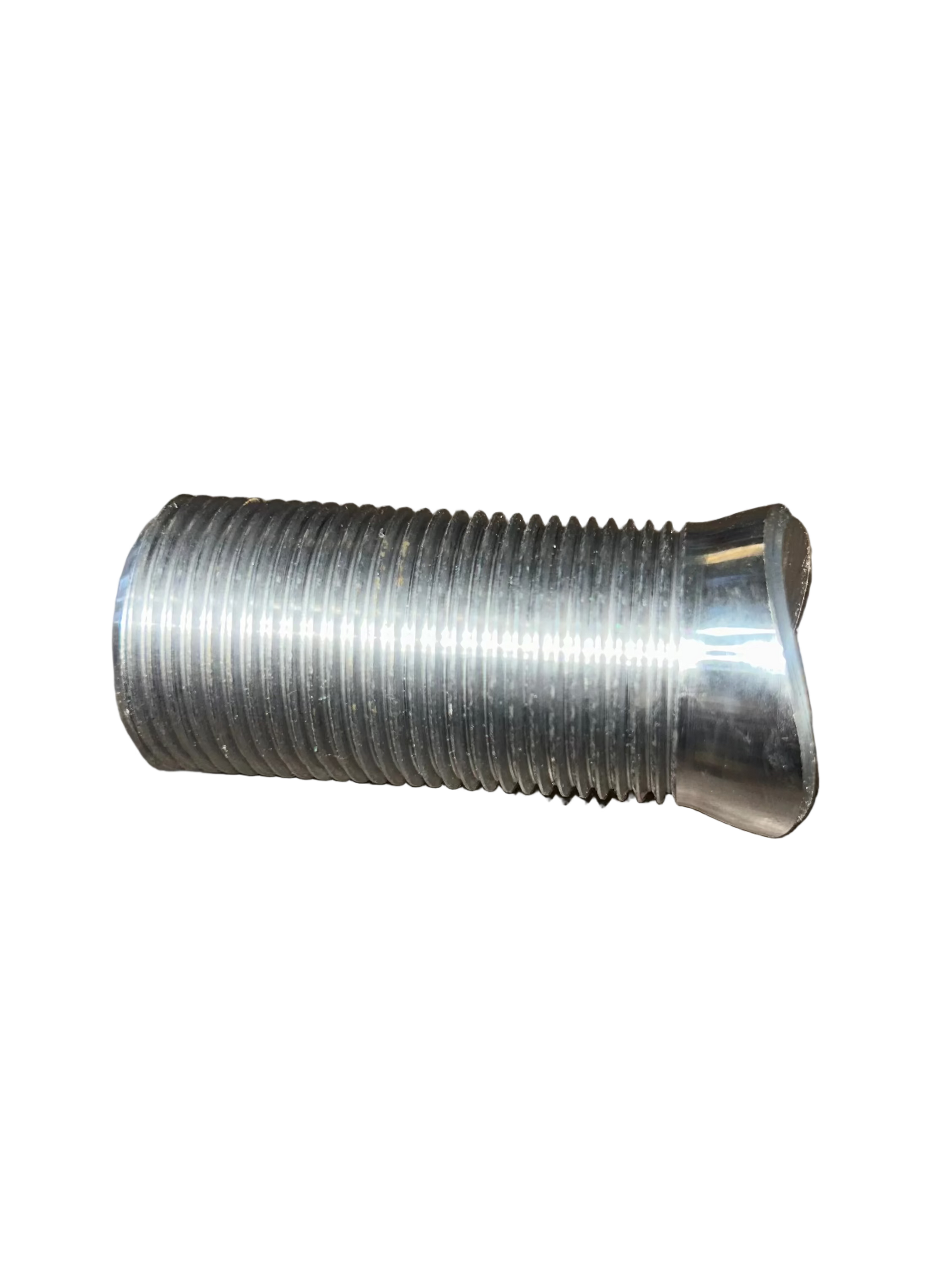

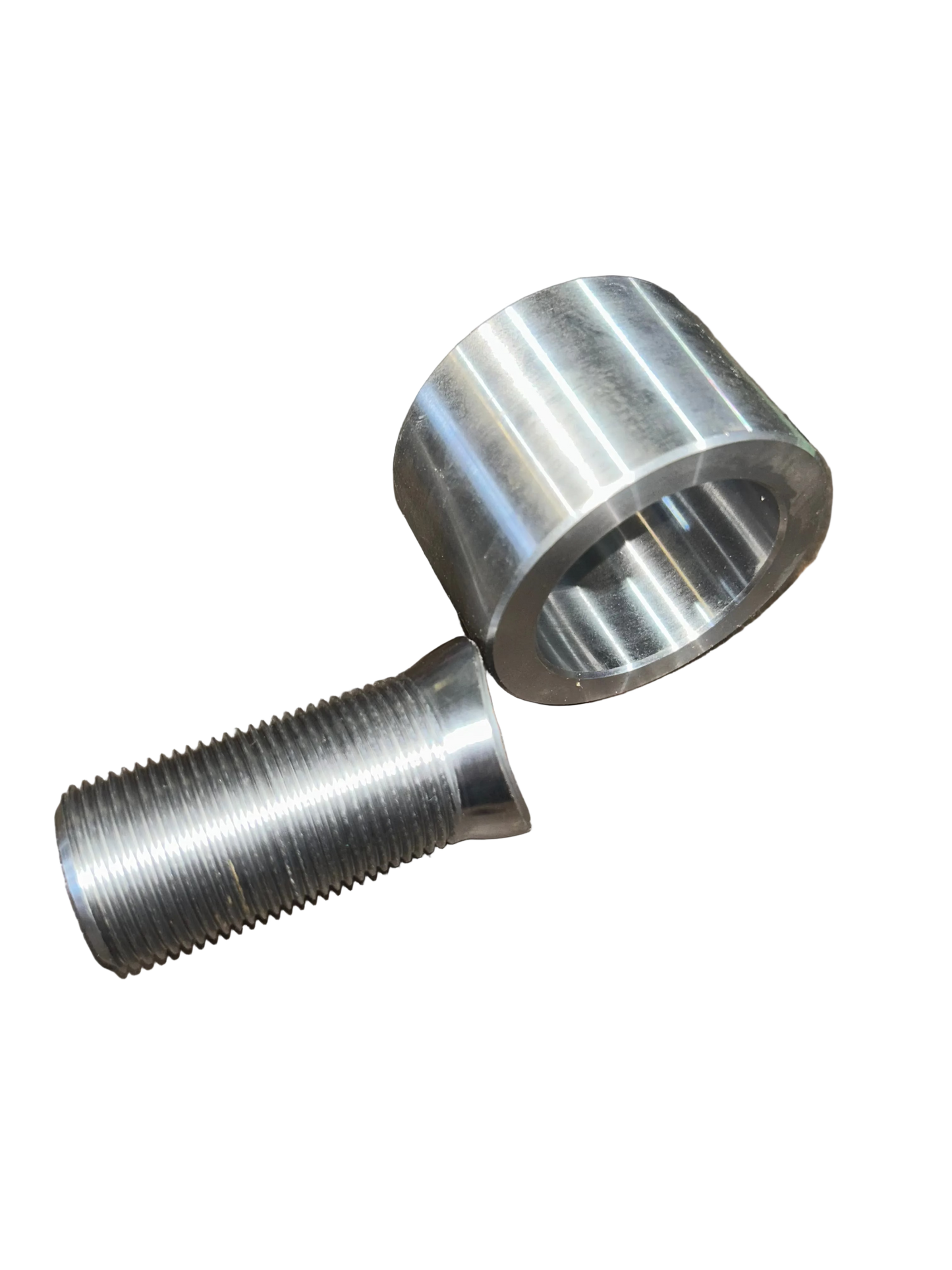

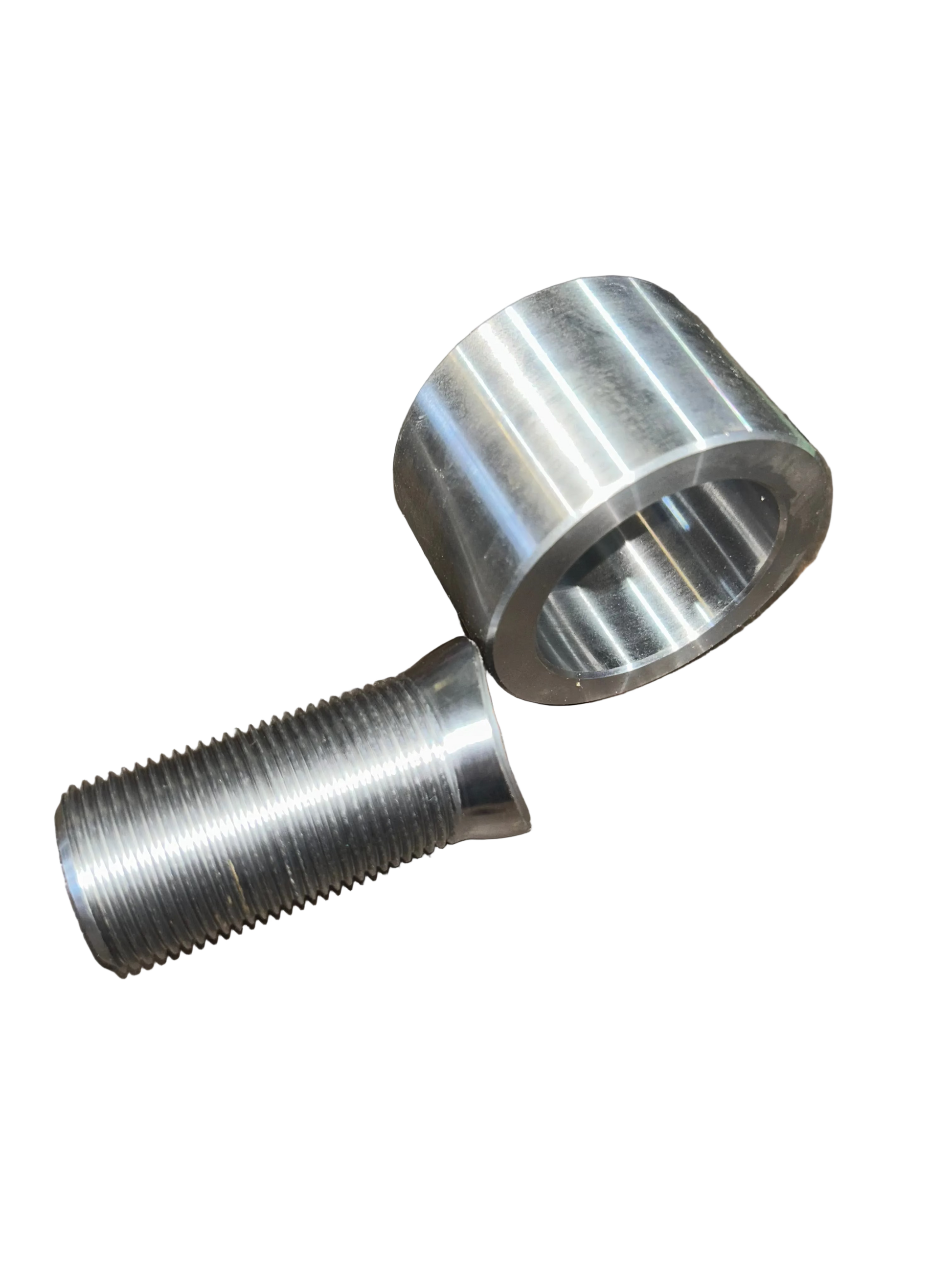

Weld On Threaded Shank

Our weld on threaded shanks are available in 7/8” And 1.25” UNF right handed thread.
Machined in house from 1020 bright bar.

The 7/8” shank is profiled to suit 60mm OD bush housing.
The 1.25” shank is profiled to suit 70mm OD bush housing. These can be found here

Both can be easily manipulated to suit other diameters and feature a beveled edge to assist with a better weld.

Great for making your own bushes on our 7075 links, while keeping a standard thread so it’s easily swapped for a heim.

These are designed to keep the same bolt centre to bottom of jam nut spacing as the equivalent heim.

Includes a jam nut.
Sold individually
