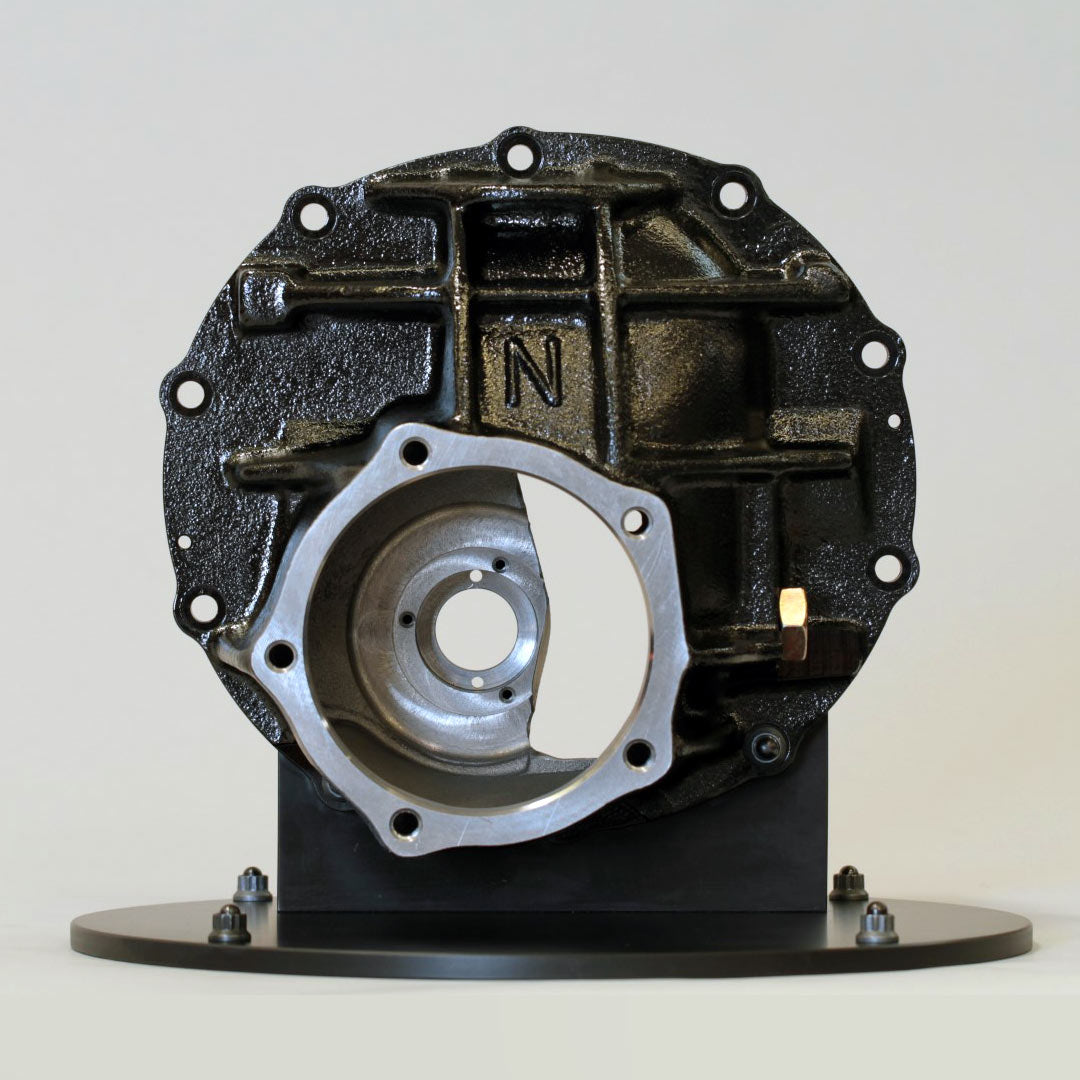

Gearworks 3.250″ Iron Load Bolt Case

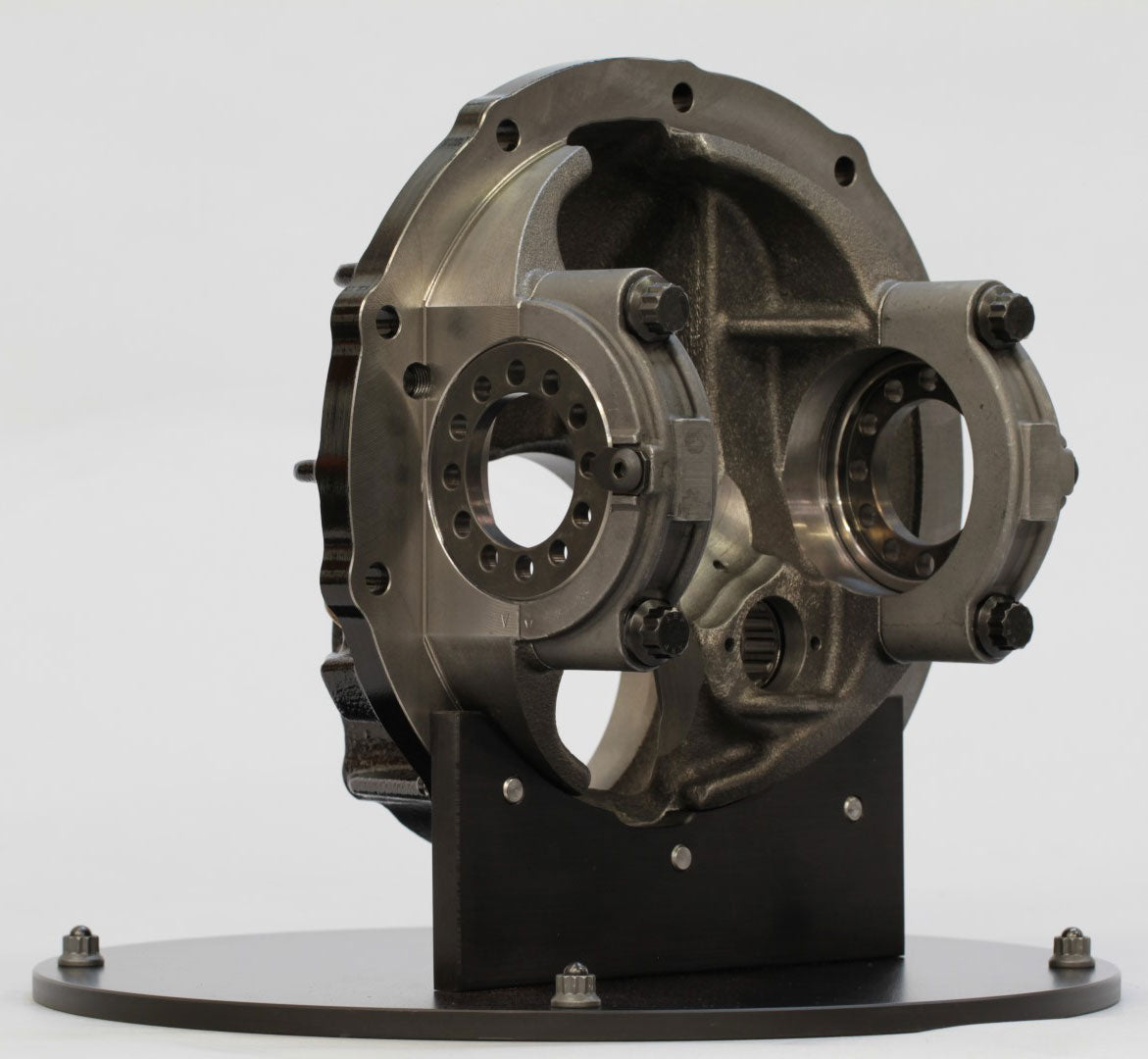

This Gearworks case uses 7/16″ pinion support bolts and a taller pocket bearing with more load capacity than a standard 9″ bearing that is held in by a retainer plate and 3 flat head screws.  Fits 9″, 9.5″ & 10″ gears.   A large Load Bolt keeps ring gear deflection at bay.  The forged chromoly caps are retained by top quality ARP 12 point cap screws. They also include 2 jack screw holes to aid in third member removal. It is clearanced, drilled and tapped for ARB air locker installation.

This is the very best bang for the buck 3.25″ case made.

As always Made In USA!

*This is a bare casing, Please contact us for complete third options*
