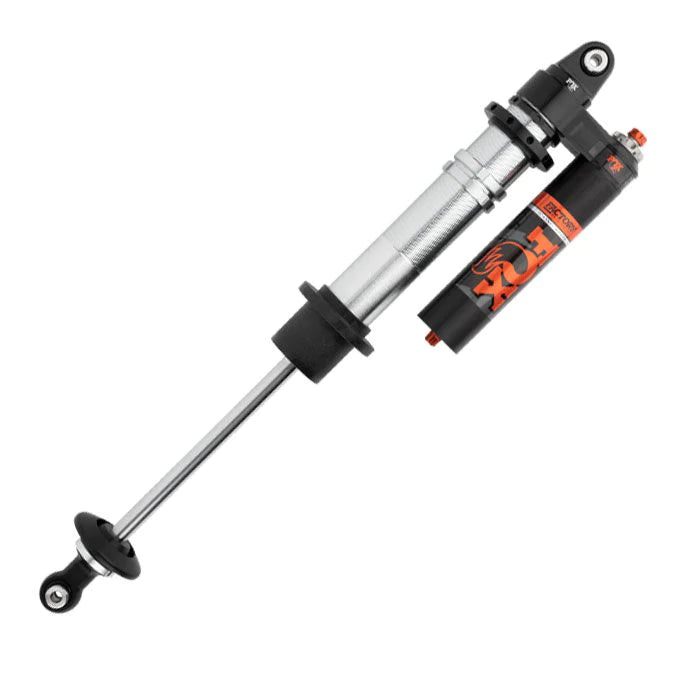

Fox Racing 2.5" Internal By-pass shocks

Fox's Factory Race Series coil-over shocks are the foundation of a race-winning suspension. They epitomize efficiency by combining our race-proven damping technology with a means to suspend the vehicle in one easy-to-mount assembly.

Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our coil-overs will give you the damping performance, suspension control and proper spring rate to get the job done. They come in several rock-solid configurations that will fit your application perfectly.

Internal Bypass (IBP):
Position-sensitive internal-bypass control in a coil-over body. For classes that mandate a single shock per wheel or anyone who wants it all. Provides bypass damping and suspends the vehicle in a compact lightweight package. Fox's patented tnternal bypass technology offers position sensitibe damping that adapts to any terrain on or off the raod, provifings a plush, predicatable ride everywhere you go.

Dual Speed Compression (DSC) Adjuster:
Add remarkable versatility and precise tuning with Fox's DSC adjuster. A simple twist of either two adjuster knobs allows 10 separate low-speed and 12 high-speed compression levels. Included new black anodized aluminum reservoir increases cooling efficiency.

Rotating Reservoir Bridge (RRB):
Fox's Rotating Reservoir Bridge (RRB) technology allows quick and easy 360 degree positioning of the shock reservoir with a spanner wrench to achieve optimal chassis clearance.

Shock Family Features:

• Body - Smooth bore and honed seamless steel
• Body Plating - Zinc plated and clear coated for a long lasting finish
• Components - Black anodized, CNC machined 6061-T6 billet aluminum
• Piston - 7075 hard-anodized high-flow aluminum piston
• Valving - Tunable, velocity sensitive deburred valve shims
• Seals - High-temp Viton® Redundant sealing pack system with main seal, wiper seal and scraper seal
• Oil - JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Shafts - 7/8" 17-4 H900 hard chrome plated stainless steel
• Bearing - Spherical -10 series, PFTE-lined, heat-treated alloy steel

1.50" mounting width with 1/2" bolt

Fox 2,1/70 valving

 Note; Not all listed sizes are ordered as stock, please contact us for availability or alternatives if the size your looking for is out.
