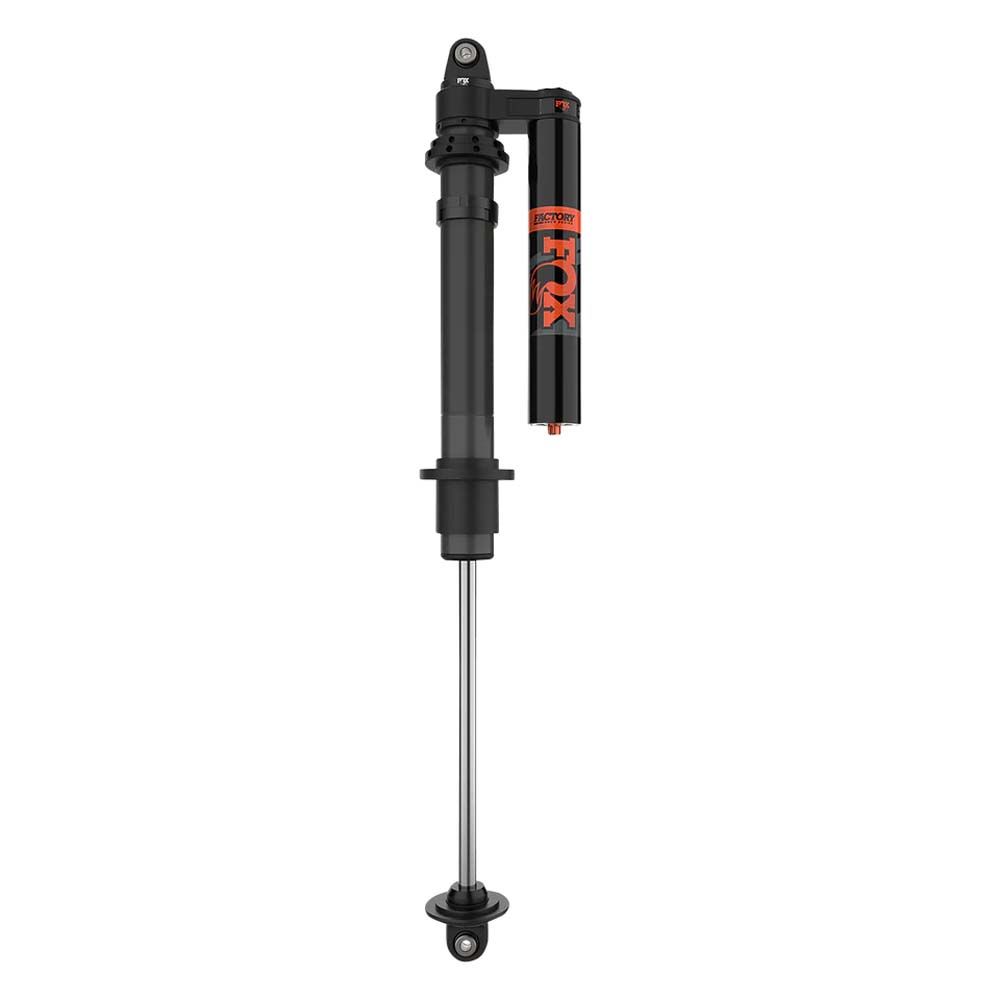

Fox Factory Race 2.5" Coilover Piggyback Shock

Factory Race Series coil-over shocks are the foundation of race-winning suspension, providing a primary means to suspend the vehicle paired with adjustable preload and dual-rate spring crossover rings to dial in the perfect ride

Features:

• BODY: Smooth bore and honed seamless steel
• BODY FINISH: Dual coated body with proprietary FOX Grey Cerakote® protective ceramic coating over zinc plated basecoat for improved corrosion resistance and durability
• BEARING: Wire ring bearing design
• WEAR BAND: PTFE coated bronze impregnated steel piston wearband
• EYELET: 2” black anodized billet aluminum lower eyelet now standard
• FAV CAP: Orange anodized billet aluminum FAV cap
• COMPONENTS: Black anodized, CNC machined 6061-T6 billet aluminum
• SHAFT: 7/8" hard chrome plated 17-4 H900 stainless steel shafts
• PISTON: 6061-T6 hard-anodized billet aluminum 9-port high-flow piston
• VALVING: Tunable, velocity sensitive deburred valve shims
• SEALS: High-temp Viton® redundant sealing pack system with main seal, wiper seal and scraper seal
• OIL: JM92 Advanced Suspension Fluid for superior race proven performance from 0-400° F
• HEIMS: PFTE-lined, heat-treated steel spherical bearings
• HOSE/FITTINGS: Reusable ORB O-ring port hose fittings for superior seal
• INCLUDED ACCESSORIES: Adjustable preload rings, crossover rings, spring divider and spring retainer
• ADJUSTMENTS: Piston Valving - Compression, Rebound | Spring preload | Spring dual-rate crossover point

Configuration:

• RESERVOIR: Piggyback
• ADJUSTERS: Non-adjustable
• EYELET LENGTH: 1.95"
• MOUNTING: 1/2" x 1-1/2"
• SPRING COMPATIBILITY: 3.00" ID

Sold Individually

All shocks listed in stock are on the shelf ready to ship!!

Please contact us for any out of stock shocks, usually can be here in 2-3 weeks
