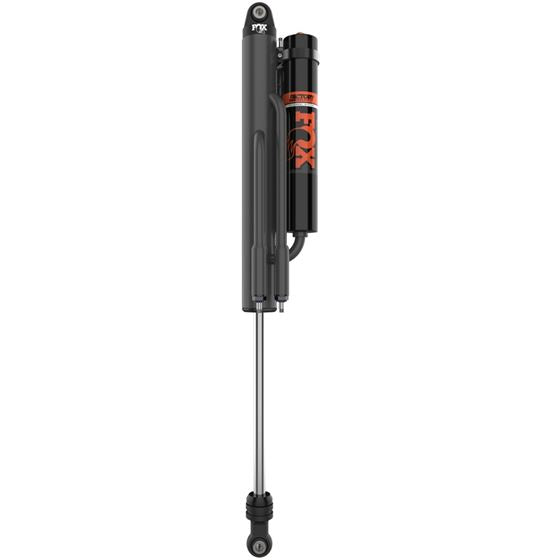

Fox Factory Race 2.5" Bypass Piggyback
Fox Factory Race 2.5" Bypass Piggyback
Regular price
$2,500.00 AUD
Regular price
Sale price
$2,500.00 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
2.5 FACTORY RACE SERIES EXTERNAL BYPASS
FOX External Bypass shocks have racked up countless wins across the globe over the past 30 years. There’s no questioning whether they’re race proven, but in the words of Bob Fox, “we’re never done.” In that spirit, we’ve revitalized our tried-and-true externally adjustable position sensitive damping archtecture to deliver all-new standards of performance and durability, all while streamlining the production process.
NEW FEATURES
| BODY FINISH | Dual coated body with proprietary FOX Grey Cerakote® protective ceramic coating over zinc plated basecoat for improved corrosion resistance and durability | |
|---|---|---|
| ADJUSTERS | Revised Gen 2 clicker adjuster for 3/4” bypass tubes with black anodized adjuster housings and color coded seals for compression, rebound, and gold valves. | |
| RESERVOIR CLAMP | Black anodized billet aluminum reservoir clamp (piggyback) | |
| BEARING | Wire ring bearing design | |
| FAV CAP | Orange anodized billet aluminum FAV cap | |
| PART NUMBERS | New structure denotes diameter in middle two digits -L (LEFT), -R (RIGHT) and -C (CUSTOM) variation suffixes |
|
CARRYOVER FEATURES |
||
| COMPONENTS | Black anodized, CNC machined 6061-T6 billet aluminum | |
| BODY | Smooth bore and honed seamless steel | |
| BODY CAP | Rotating body cap design allows precise clocking and fitment | |
| SHAFT | 7/8" hard chrome plated 17-4 H900 stainless steel shafts | |
| PISTON | 6061-T6 hard-anodized billet aluminum 9-port high-flow piston | |
| VALVING | Tunable, velocity sensitive deburred valve shims | |
| SEALS | High-temp Viton® redundant sealing pack system with main seal, wiper seal and scraper seal | |
| OIL | JM92 Advanced Suspension Fluid for superior race proven performance from 0-400° F | |
| HEIMS | PFTE-lined, heat-treated steel spherical bearings | |
| ADJUSTMENTS | Piston Valving - Compression, Rebound External Bypass adjusters - Compression, Rebound |
|
STANDARD CONFIGURATIONS |
||
| TRAVEL | 8", 10", 12", 14", 16", 18" | |
| RESERVOIR | Piggyback, Remote | |
| TUBE SIZE | 3/4" | |
| BYPASS LAYOUT | 3 Tube (2 compression, 1 rebound), 4 Tube (2 compression, 2 rebound) | |
| EYELET LENGTH | 2.95" | |
| MOUNTING | 1/2" x 1-1/2" | |
| ORIENTATION | Left (-L) and Right (-R) specific part numbers | |
CUSTOM OPTIONS |
||
| VALVING | Custom valving specs | |
| BYPASS LAYOUTS | Custom tube layouts | |
| ECS2 | External Cooling System 2 - race proven to reduce fluid temps by up to 150° F | |
| ADJUSTERS | Gold Valve (free bleed), QAB (Quick Adjust Bypass) | |
| EYELETS | Multiple eyelet mounting lengths | |
| MOUNTING | 1-1/2" mounting width spacers/reducers | |
| PART NUMBERS | Replace "-L"or "-R" in standard part numbers with "-C" for custom configurations | |
