Fox Factory Race 2.0 Coilover Remote res

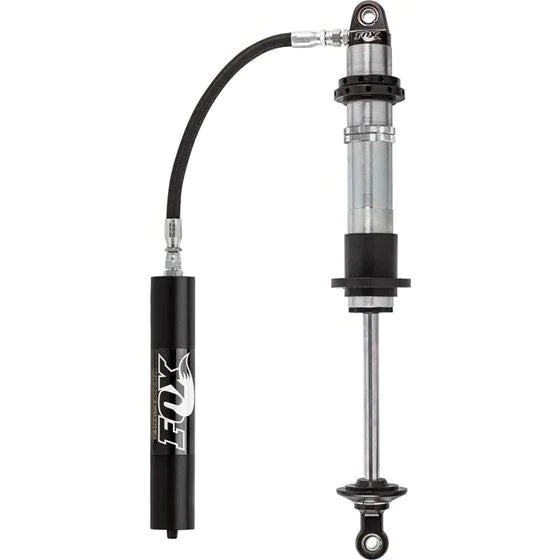

FACTORY RACE 2.0  COIL-OVER REMOTE SHOCK

Fox's Factory Race Series coil-over shocks are the foundation of a race-winning suspension. They epitomize efficiency by combining our race-proven damping technology with a means to suspend the vehicle in one easy-to-mount assembly.

Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our coil-overs will give you the damping performance, suspension control and proper spring rate to get the job done. They come in several rock-solid configurations that will fit your application perfectly.

Shock Family Features:

• Body - Smooth bore and honed seamless steel

• Body Plating - Zinc plated and clear coated for a long lasting finish

• Components - Black anodized, CNC machined 6061-T6 billet aluminum

• Valving - Tunable, velocity sensitive deburred valve shims

• Hose - Stainless Steel braided -8 hose for improved durability features high flow crimped fittings

• Seals - Redundant sealing pack system with main seal, wiper seal and scraper seal

• Oil - JM92 Advanced Suspension Fluid for improved performance at variable temperatures

• Shafts - 7/8" 17-4 H900 hard chrome plated stainless steel

• Bearing - Spherical -8 series, PFTE-lined, heat-treated alloy steel

All coil-over shocks come with required spring hardware, including lower spring retainer, upper preload adjuster, preload lock ring, spring slider/divider, and dual rate cross over rings.

Each shock includes 2 rubber reservoir mounting blocks and 2 stainless steel worm drive hose clamps. Typical mounting locations for the reservoir include to the body of the shock or to cage tubework

• 1.25" mounting width with 1/2" bolt

• Fox 50/70 valving

Uses 2.5" ID springs (Sold seperately)
Sold Individually, not as a pair or set

 Note; Not all listed sizes are ordered as stock, please contact us for availability or alternatives if the size your looking for is out.
