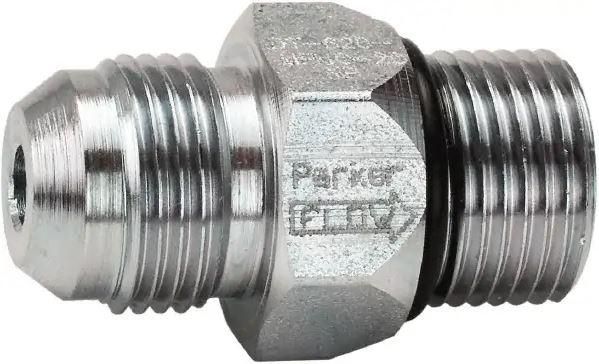

Check Valve Fitting for Steering Control (Orbital) Valve, -8 JIC X 3/4-16

Check valves are important components that are often overlooked when building a fluid system. A check valve can optimize system performance in the following ways:

• Ensure hydraulic fluid flows in only one direction
• Eliminate potential damage from back pressure
• Isolate sections of a system or system components

SPECIFICATIONS:

Outlet Port Connection Type: Male SAE O-ring Straight Thread
Inlet Port Connection Type: Male JIC 37 degree
Outlet Port Size (inch): 3/4-16
Inlet Port Size (inch): 3/4-16
Maximum Working Pressure (PSI): 4500
Connection Size: 3/4-16
Mounting Type:Threaded
Actuator Type:Mechanical
Connection Type: Male Flare JIC to Male ORB
Body Material:Steel
