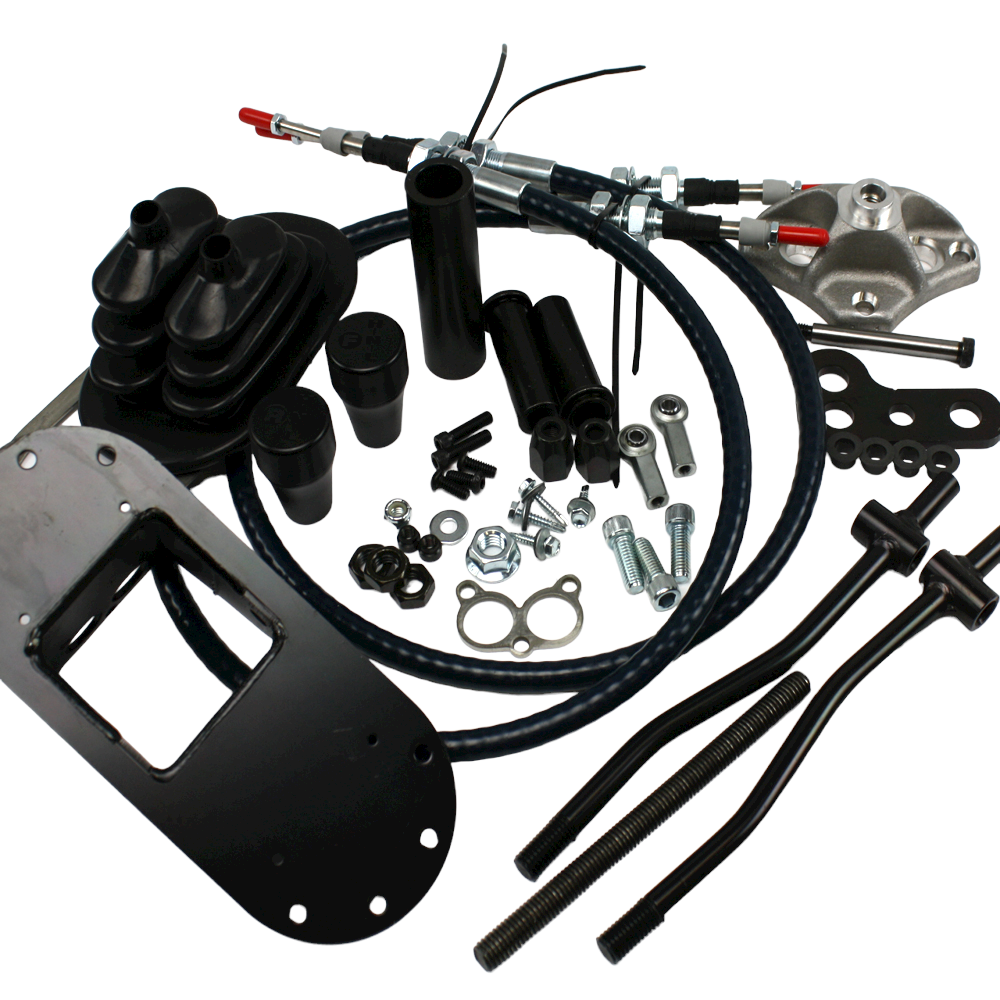

Atlas Cable Shifter Kit 2012+

Atlas Universal Twin Stick Cable Shifter (fits all units built after 5/1/12)

#309009

This shifter fits the transfer cases built after May 1 2012; the design of the cable connections to the Atlas was updated for an easier installation. The easy way to tell whether you need this kit or you need PN303009A is by looking at the shift rails coming out of the Atlas transfer case, if they have a hole drilled on the end of them, then this is the correct kit. If the shift rail is solid on the end then you need the earlier version.

Bill Of Materials

• BASE- ATLAS TWIN STICK MOUNT / 302051
• BOOT- TWIN STICK / 302060
• ATLAS LOGO FOR NEW KNOBS / 302061
• BOOT RING- ATLAS TWIN STICK / 302063
• STUD BOLT 1/2 -13 X 7 B7 / 302080
• KNOB- BULK WITH STICKER RECESS / 302083
• SHIFTER STICKER - ATLAS REV PATTERN (H-N-L) / 302084
• 303009 KIT BOLT PACK / 303119
• HOUSING- ATLAS TWIN STICK SHIFTER / 303301
• LEVER- ATLAS TWIN STICK CABLE SHIFTER / 303304
• BRACKET- ATLAS SHIFT CABLE / 303307
• BOLT- SHOULDER 3/8 DIA. 5/16 TH x 3 shoulder l. / 303310A
• BUSHING- IGUS 3/8 / 303312
• ROD END- FEMALE 1/4 -28 / 303313
• NUT- ATLAS CABLE RETAINER OUTER / 303316
• NUT- CABLE SHIFTER- JAM 1/4-28 / 303317
• HEAT SHIELD- FIREPROOF SLEEVE 24" / 42R726
• CABLE-SHIFTER 48" LENGTH 1" TRAVEL / 303309-1
• TUBE- ATLAS SHIFTER EXTENSION 4.60 (blue cables) / 303308-B
